videosynthΩhm_2 proto Arduino Due video synth / audio visualizer (photos and video)

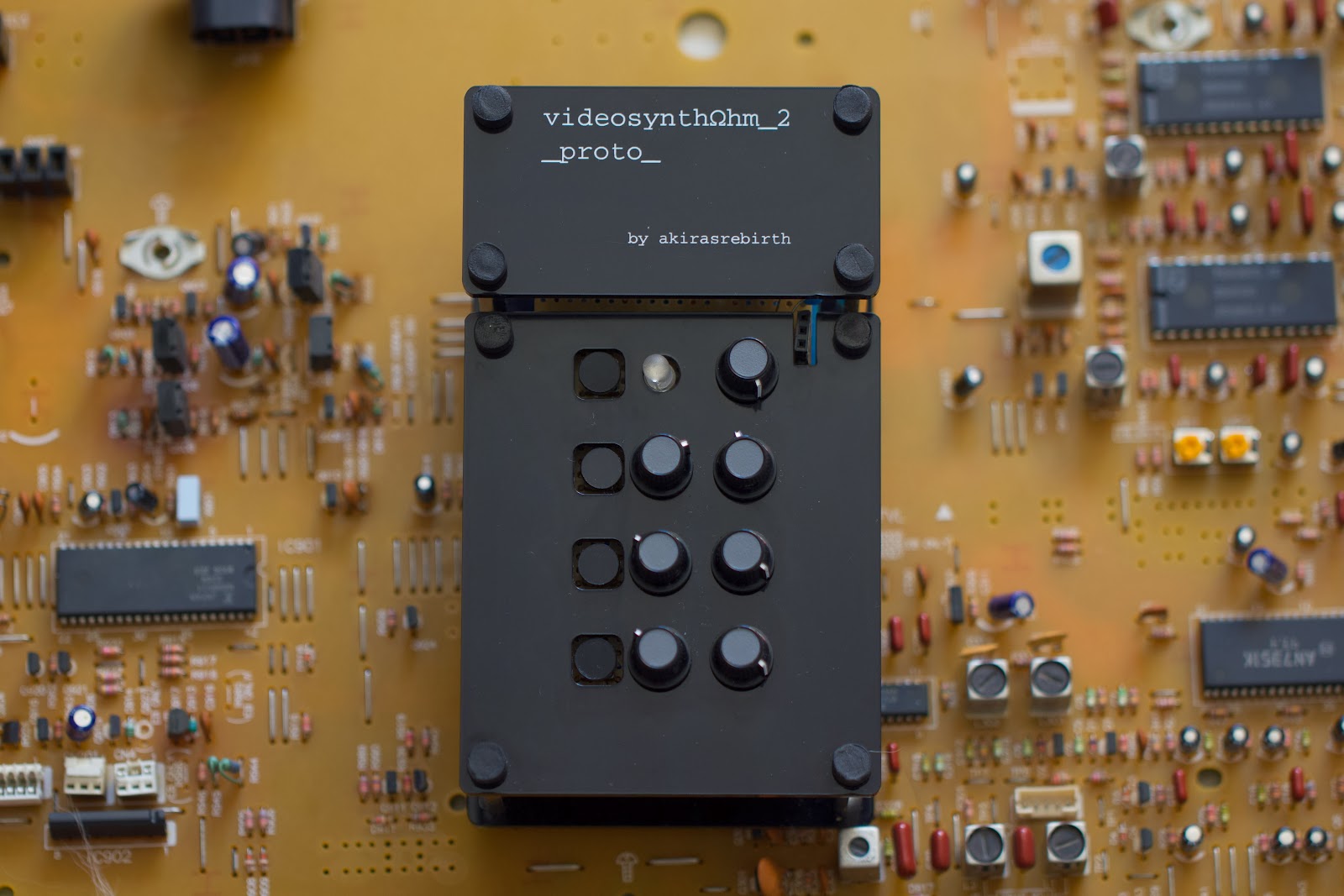

top view

The first prototype of the videosynthΩhm_2 is finished!
The videosynthΩhm_2 is a sort of video synthesizer or better a pattern generator that reacts to incoming audio. It is designed with live performance in mind.

The video output is lowfi, 8 bit style, glitchy and a little weird ;-)


top view


This is my first bigger project with the Arduino Due. The Arduino Due is a nice board with more power as the standard Arduino. I'm using the Due VGA library by stimmer for generating a composite video signal. The library has basic graphics functions for points, lines, triangles, circles and rectangles and supports color output.

top view
Specs:
  • Arduino Due running VGA DUE library with custom sketch
  • Seven band graphic equalizer IC MSGEQ7
  • Audio in for an amplified electret microphone
  • 7 potentiometers
  • 4 push buttons
  • 1 RGB LED
  • Video out RCA
  Functions:
  • The first left potentiometer is used as program selector. The videosynthΩhm_2 has 8 different effects. The color of the RGB LED changes accordantly to the chosen program.
  • The other 6 potentiometers control different parameters (size, position on x axis, position on y axis, scrolling up and down, scrolling left and right, color etc)
  • If a pot is turned all the way to the right the values of the parameter changes randomly

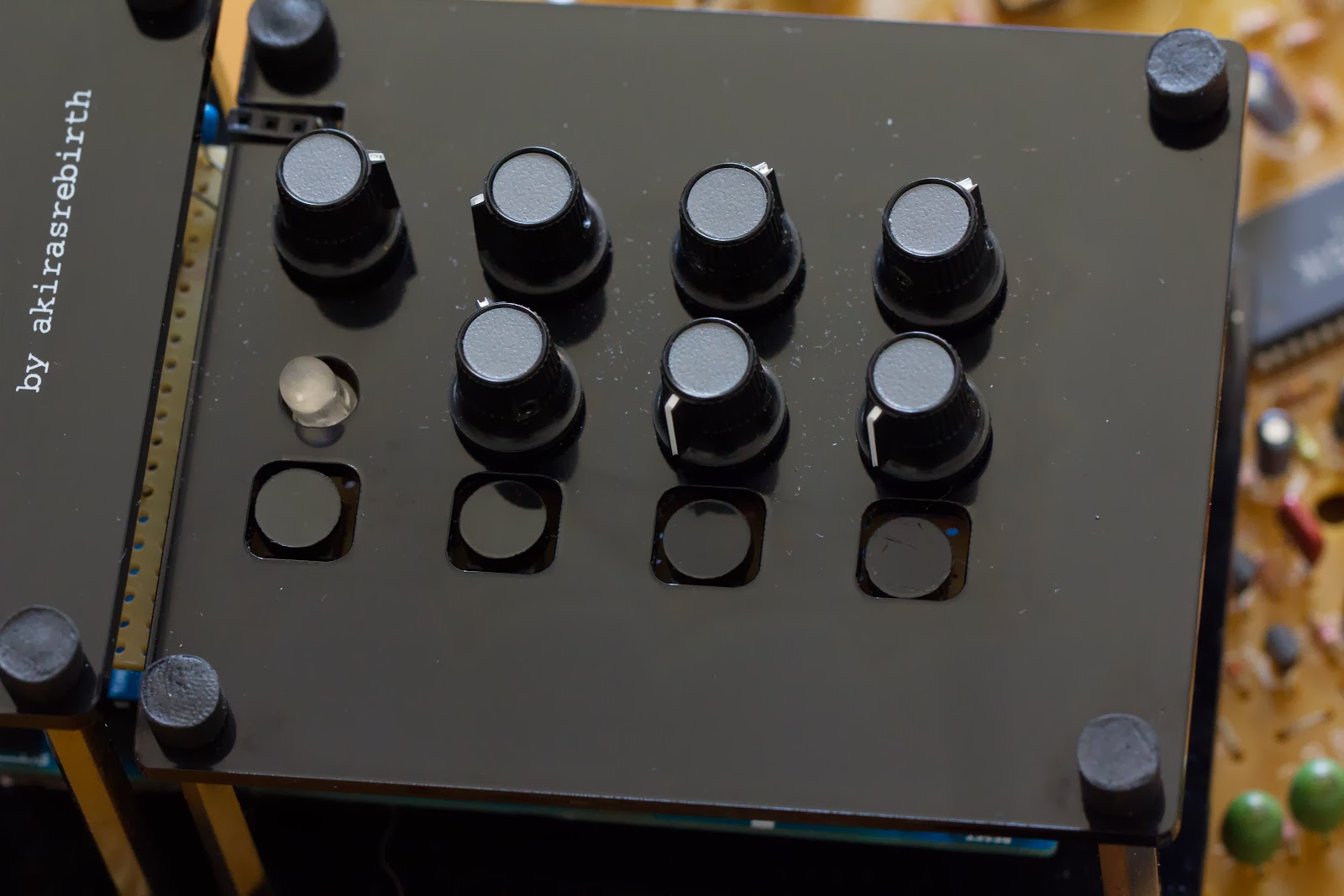

interface

  • First button on the left:
    • click: clear screen
    • hold: deactivate audio reaction on all 6 parameters
  • Other buttons:
    • click: activates the audio reaction on the parameter 1,2,3
    • hold: activates the audio reaction on the parameter 4,5,6

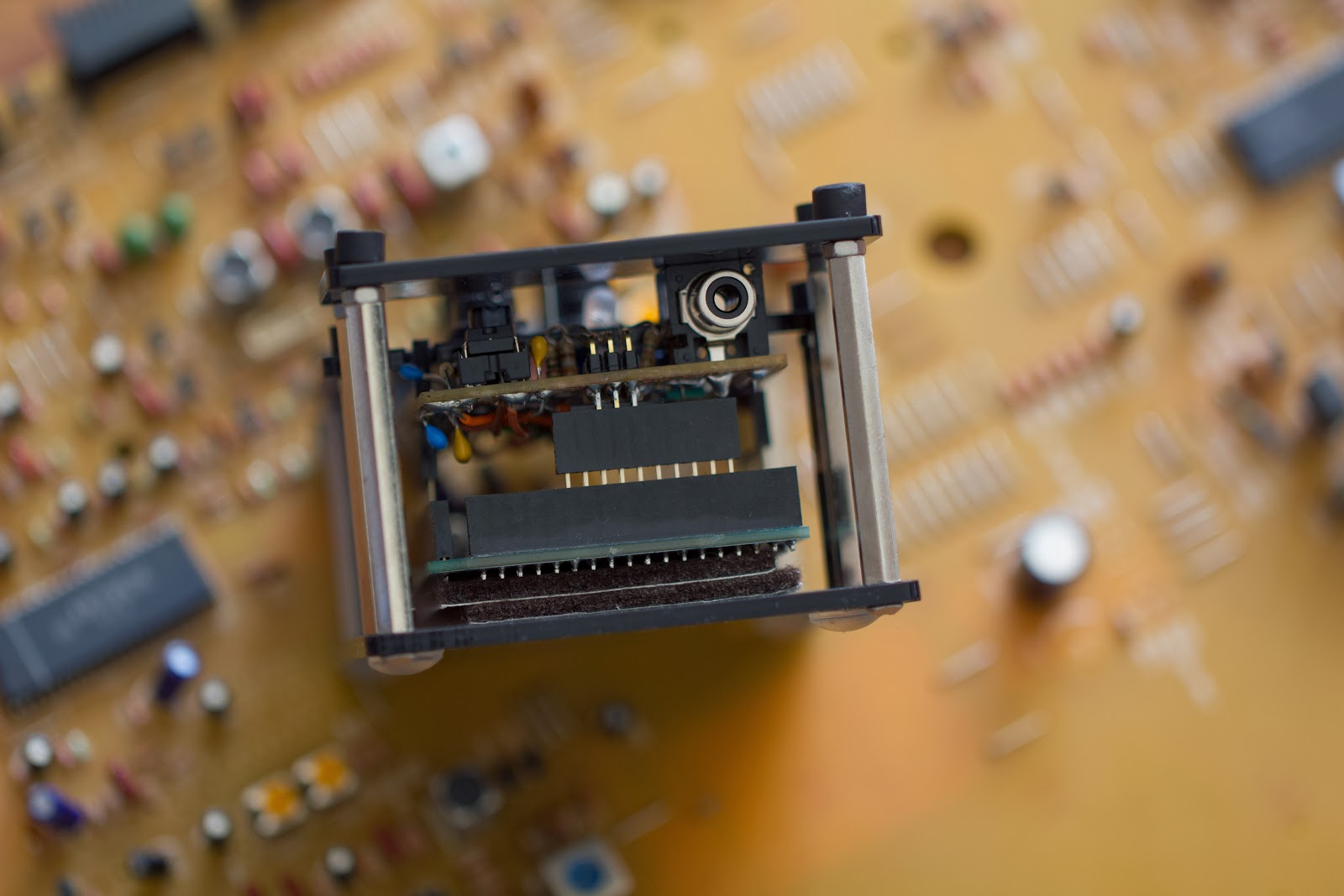

side view

side view

side view

This are the specs planned for the next version:
  • real pcb
  • double stackable shield layout. One shield as VGA DUE library shield the other as controller shield
  • VGA and video RCA output
  • PAL and NTSC switchable
  • 6 LED + 1 RGB LED
  • 7 push buttons
  • new case design
and later perhaps:
  • LCD display
  • multidirectional buttons

Some photos from the inside:
videosynthohm_2 with electret microphone

videosynthohm_2 shield

on the left the MSGEQ7 IC an the RCA output

bottom view

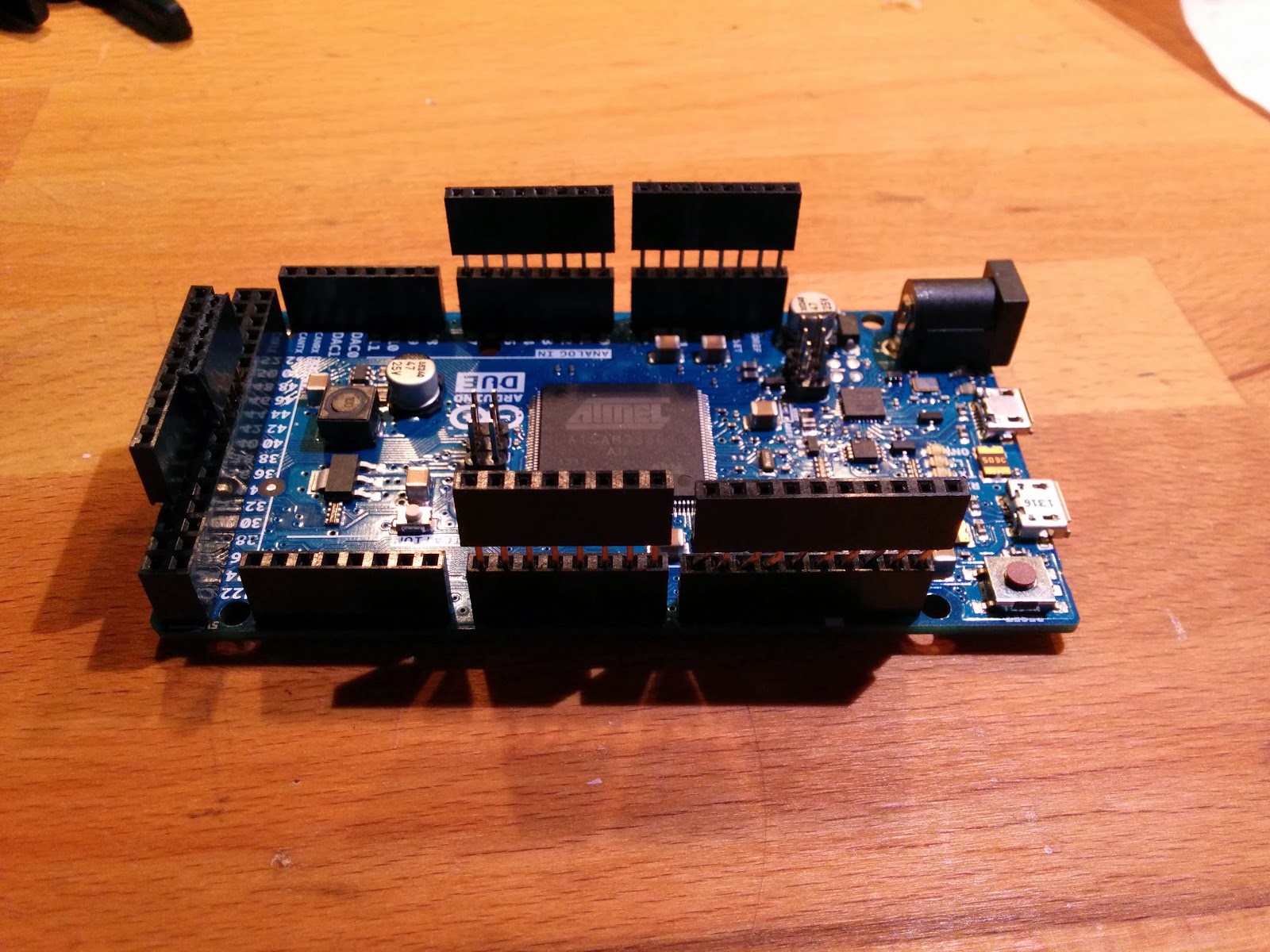

Arduino Due with headers



a
